16 Pin Micro SATA Cable

  • 1.8 inch Micro SATA 16 pin SSD Drive Extension CableMicro SATA 16 pin cable

    1.8 inch Micro SATA 16 pin SSD Drive Extension Cable

    1)7+7+2 16-Pin Micro SATA male to female extension cable

    2)Extend the cable for connecting a 1.8″ hard disk drives with Micro SATA port

    3)Ideal for installing 1.8″ disk drives in desktop and notebook computers

    4)Fully shielded to reduce EMI and other interference sources

    5)Compliant with Serial ATA III Specifications

  • 16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter

    16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter

    1)7 pin SATA receptacle connector supports system data applications.

    2)15 pin plug with converter for 5V to 3.3V can be used for both 5V or 3.3V drives.

    3)Used with a 15 pin female socket that has only a 5V power supply.

    4)Convert 5V to 3.3V

  • 16 Pin SATA to 7 Pin SATA+Samtec 4 Pin data CableSamtec 4 Pin to SATA 7 Pin and 16 Pin SATA Cable

    16 Pin SATA to 7 Pin SATA+Samtec 4 Pin data Cable

    1)16 Pin Micro SATA Cable Assembly with 7 Pin Angle SATA connector and Samtec 4 Pin Connector

    2)Samtec Connector PN # IPD1-04-D-K

    3)Ideal for installing 1.8″ disk drives in desktop and notebook computers

  • 16P Micro SATA to 7P SATA Molex Power Cable16 Pin Micro SATA III to SATA III Data and Power Combo Cable

    16P Micro SATA to 7P SATA Molex Power Cable

    1)Micro SATA 4-pin power cable with built in 5v to 3.3v converter with SATA data cable

    2)4-pin power cable converts the 5v power source to the 3.3v power.  3.3v power operates on most Micro SATA 1.8-inch form factor SSD or HDD

    3) Micro SATA connector is a 16 position socket which includes 7 positions with 1.27mm pitch for signal and 7+2 positions with 1.27mm pitch for power requirements.

    4)The 7-pin SATA receptacle connector supports system data applications. 4-pin power connector is a 4-pin molex type male power plug

  • 7+7+2 16 Pin Micro SATA to 22 pin SATA Data Cable

    7+7+2 16 Pin Micro SATA to 22 pin SATA Data Cable

    1)Straight 22 Pin SATA Female can provide SATA 3.0 Data and 3.3V Power

    2)Power a 2.5’’ Drive using a (7+9) 16 pin Micro SATA male connector off a Mother Board

    3)Power a (7+7+2) 16 pin Micro SATA 1.8 Inch drive from a 2.5 Inch Male Connector on a Mother Board that Supplies 3.3V.

    4)Pls note that this cable is bot suitable for 3.5inch HDD.

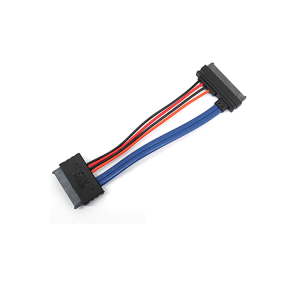

  • left Angle SATA III 22 Pin to 16 pin Micro SATA CableMicro SATA 16 pin to 22 Pin left Angle SATA III Cable

    left Angle SATA III 22 Pin to 16 pin Micro SATA Cable

    1)22 Pin SATA Female assembly providing Power and Data from a Micro SATA 16 pin Male connector.

    2)Power a 2.5 Inch Drive using a Micro SATA 16 pin SATA male connector and adapts it to a 22 Pin SATA female Connector.

    3)Suitable for 2.5 inch hard disk, not support 3.5 inch hard disk

    4)Short length for internal installing

  • Micro SATA 16 Pin to 7 Pin & 15 Pin SATA Power CableMicro SATA to 7 Pin SATA and 15 Pin SATA Power Adapter cable

    Micro SATA 16 Pin to 7 Pin & 15 Pin SATA Power Cable

    1)Allows you to connect a 1.8in SSD (Solid State Drive) to a computer in the same way you would a standard SATA form factor hard drive

    2)Simple way to attach your SSD drive to your computer to retrieve data or use as a hard drive.

    3) Power supply must provide the 3.3v and 5v power that is standard on SATA power supplies.

    4)Easy to install.
