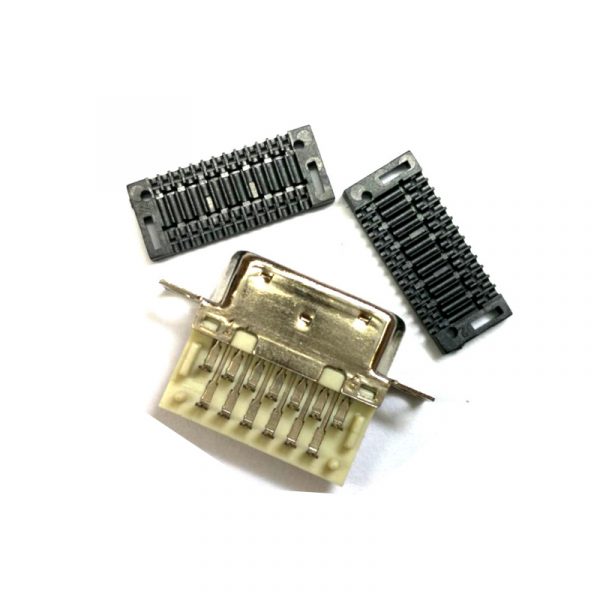

1.0mm Pitch 26 pin VHDCI male SCSI Connector
Starte 1.0mm Pitch 26 pin VHDCI male SCSI Connector pin is arranged in two rows, each row has 13 pin.This VHDCI 26 pin connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire), and compatible with File Servers / Networking Equipment.
- Description
- Inquery Form
1.0mm Pitch 26 pin VHDCI male SCSI Connector
Starte 1.0mm Pitch 26 pin VHDCI male SCSI Connector, the IDC type 1.0mm Pitch VHDCI 26 Pin Male Connector pin is arranged in two rows, each row has 13 pin.This VHDCI 26 pin connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire), and compatible with File Servers / Networking Equipment.
Product Parameters of Pitch 1.0mm VHDCI 26 pin male Connector :
Item | 1.0mm Pitch 26 pin VHDCI male SCSI Connector |
Brand | Starte |
Model No. | SCCC012 |
Product type | 26 Pin SCSI Connector |
No. Of Contact | 26 pin |
Contact Type | 1.00mm cable receptacles Connector IDC Type |
Options | Screw |
Wire | UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of VHDCI26P Ribbon Type Metal Plug Connector:
Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Cover&Holder | Plastic Thermoplastic P.B.T UL94V-0, Black |
Inner Shell | Steel, Nickel Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of 1.0mm Pitch 26 pin VHDCI male SCSI Connector:
This 1.0mm Pitch 26 pin VHDCI male SCSI Connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire), and compatible with File Servers / Networking Equipment.
