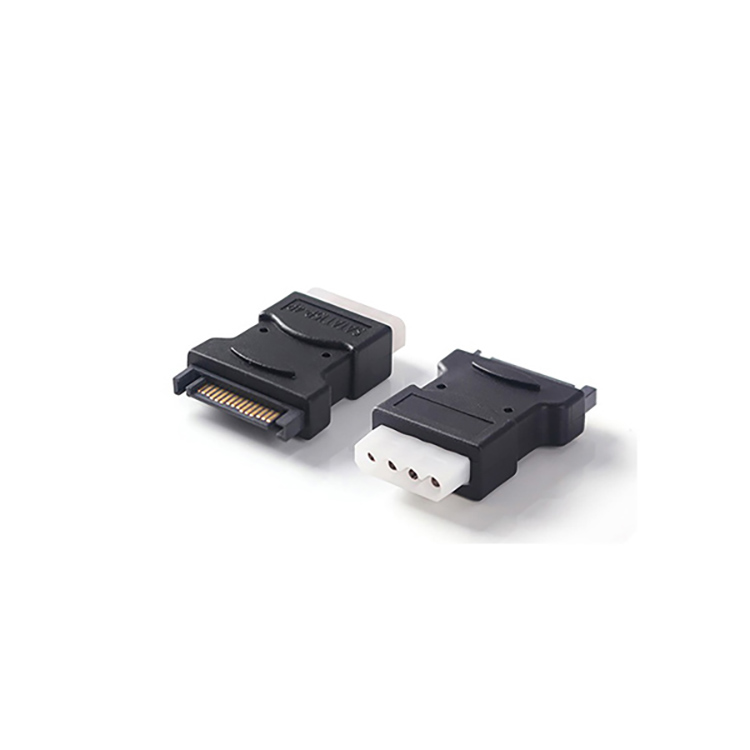

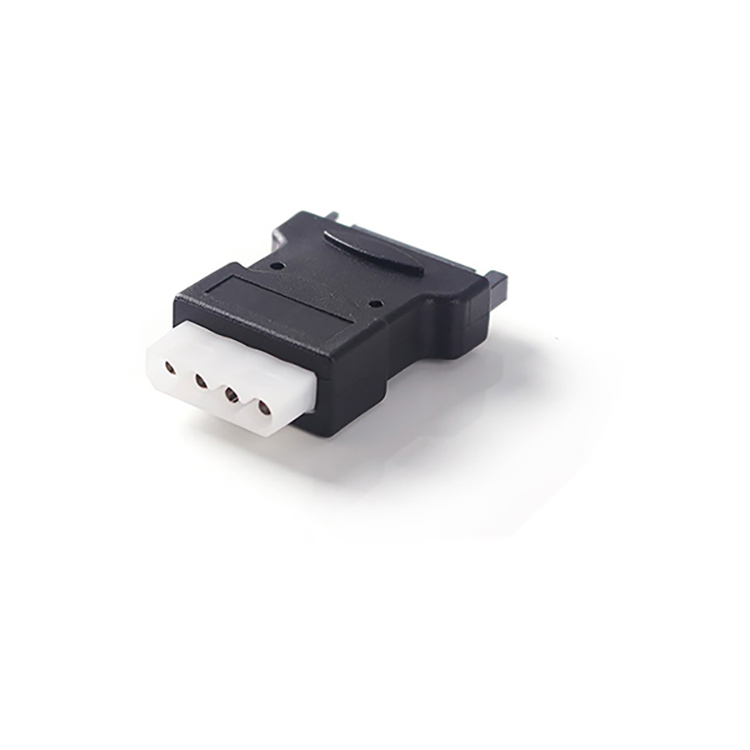

15 Pin SATA male to 4-pin Molex Power Adapter
1)15 Pin Male SATA to standard 4 Pin Molex Female Socket Power plug adapter converter
2)15 Way SATA Male to LP4 Molex Female
3)Ideal for adding older devices to a newer SATA equipped computer.
3)Connect to a 15-pin SATA power connector and power any device that requires a 4-pin Molex connector
- Description
- Inquery Form
15 Pin SATA male to 4-pin Molex Power Adapter
Starte 15 Pin SATA male to 4-pin Molex Power Adapter, this SATA 15-pin male to 4-pin Male Molex Power Adapter converts SATA 15-pin power plug to standard MOLEX 4-pin Plug. Works with Any New SATA Only Power Supply! Special 15-Pin SATA Power Female Connector to Standard Molex 4-Pin for all Older IDE/ATA Devices including Hard Drives and Optical Drives.
Product Parameters of 4 Pin Female Molex to 15 Pin Male SATA Adapter:
15 Pin SATA male to 4-pin Molex Power Adapter
| Item | 15 Pin SATA male to 4-pin Molex Power Adapter |
| Brand | Starte |
| Model No. | SACF002 |
| Cable Type | SATA Adapter |
| Connector 1 | 15 pin SATA male connector |
| Connector 2 | 4 pin Molex female connector |
| Connector plating | Nickle Plated |
| Gender | Male to female |
| Wire | UL 28/26AWG/24AWG |
| Conductor | BC,TC |
| Pin layout | Standard |
| Jacket | PVC |
| Sample | Allowed |
| MOQ | 500 pcs |
| Package | PE bags |
| Warranty | Two years |
| OEM | Support |
4 Pin Female Molex to 15 Pin Male SATA Adapter
15P SATA to 4P Molex power adapter
Feature of 15 Pin SATA male to 4-pin Molex female Power Adapter:
1)15 Pin Male SATA to standard 4 Pin Molex Female Socket Power plug adapter converter
2)15 Way SATA Male to LP4 Molex Female
3)Ideal for adding older devices to a newer SATA equipped computer.
3)Connect to a 15-pin SATA power connector and power any device that requires a 4-pin Molex connector
Application of SATA 15 Pin to 4 Pin Molex Gender Changer Adapter:
This SATA 15P Male to Molex 4P Female Adapter converts an internal SATA power cable into a 4 Pole Molex Female Socket, then to connect 12 Volt computer component and peripheral devices such as cooling fans, IDE Hard Disk Drives and Optical CD and DVD Disc Drives and many Graphics cards etc.
