16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter
Starte 16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter, this Micro SATA 16 pin cable with power converter and data Cable can be used for a Micro SATA 1.8-inch form factor Solid State Drive (SSD) or Hard Disk Drives (HDD). Micro SATA connector is a 16 positions socket, including 7 positions with 1.27 mm pitch for signal and 7+2 positions with 1.27 mm pitch for power requirements.
Product Parameters of 16 pin SATA to 15 Pin SATA with 5V to 3.3V Converter:
Micro SATA Cable with 15Pin SATA Power and 5V to 3.3V Converter
| Item | 16 pin Micro SATA to 7 Pin SATA with 5V to 3.3V Converter |
| Brand | Starte |
| Model No. | SACD005 |
| Cable Type | Micro SATA data and Power cable |
| Connector 1 | (7+7+2)Micro SATA 16 pin connector |
| Connector 2 | 7 pin SATA female connector
15 pin SATA Power male connector 5V to 3.3V Converter |
| Connector plating | Nickle Plated |
| Gender | Male to female |
| Wire | UL 18AWG |
| Conductor | Tinned Copper |
| Pin layout | Standard |
| Jacket | PVC |
| Sample | Allowed |
| MOQ | 500 pcs |
| Package | PE bags |
| Warranty | Two years |
| OEM | Support |

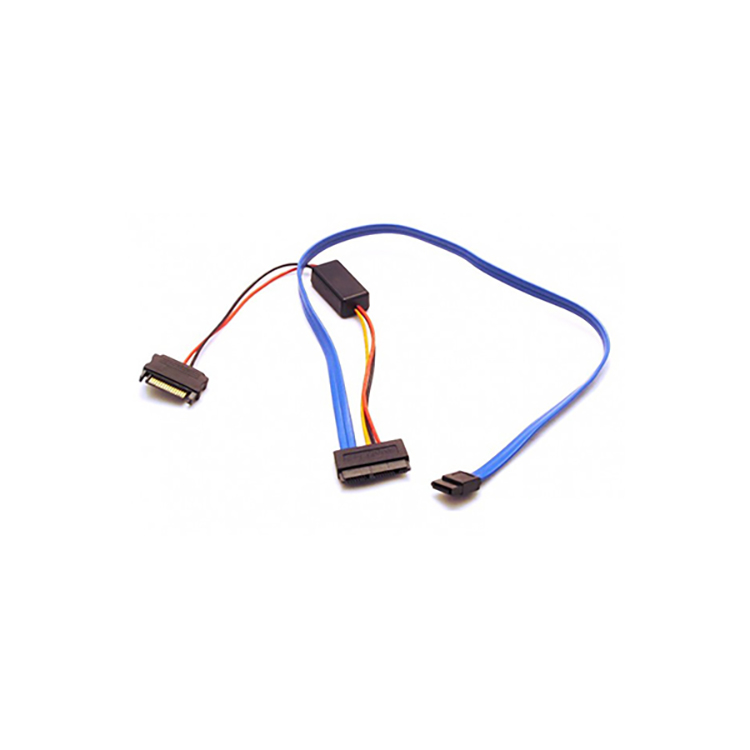

Micro SATA Cable with 15Pin SATA Power and 5V to 3.3V Converter
Feature of 16 pin SATA to 7 Pin SATA with 5V to 3.3V Converter:
1)7 pin SATA receptacle connector supports system data applications.
2)15 pin plug with converter for 5V to 3.3V can be used for both 5V or 3.3V drives.
3)Used with a 15 pin female socket that has only a 5V power supply.
4)Convert 5V to 3.3V
Application of 7+7+2 16 pin SATA to data and power SATA Cable:
This Micro SATA Cable with 15Pin SATA Power and 5V to 3.3V Converter is for a Micro SATA 1.8-inch form factor Solid State Drive (SSD) or Hard Disk Drives (HDD).
