Receptacles SCSI DB 100 female connector with latch bracket for PCB

Receptacles SCSI DB 100 female connector with latch bracket for PCB

  • ReceptaclesSCSI DB100 female connector with latch for PCB Clip Type
  • 100% testing before shipment.
  • Common Pin:14/20/26/36/40/50/68/100 Pin.
  • Description
  • Inquery Form

Description :

Starte Receptacles SCSI DB 100 female connector with latch bracket for PCB Clip Type, the scsi db 100 connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the Industrial equipment PCB.

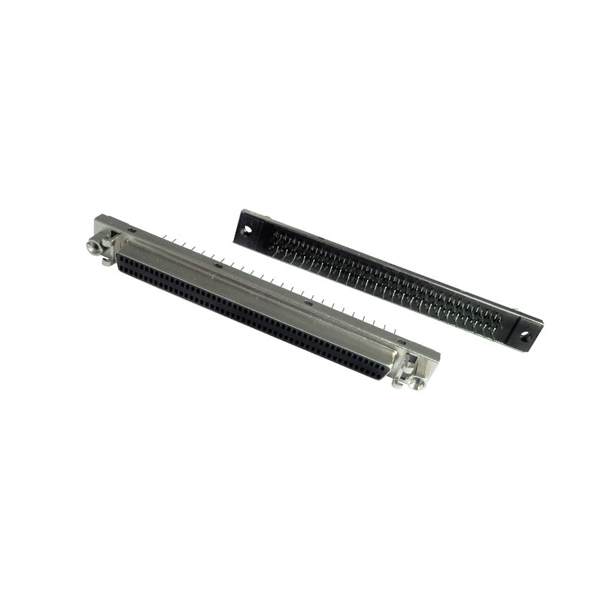

Receptacles SCSI DB 100 female connector with latch for PCB Clip Type

Receptacles SCSI DB 100 female connector with latch for PCB Clip Type

Item Receptacles SCSI DB 100 female connector with latch for PCB Clip Type
Brand Starte Precision Electronics Co., Ltd
No. Of Contact 100 pin
Contact Type Female, receptacles connector for PCB Clip type
Options Screw Bracket
Threaded Finishes #2-56
Contact Finishes Gold Selective Plating
PCB layout Standard



Materials of Receptacles SCSI DB 100 female connector with latch for PCB Clip Type:

Housing: Plastic Thermoplastic Nylon PA9T UL94V-0, Black

Connects: Copper Alloy Gold Selective Plated

Front Shell: Steel, Nickel Plated Over Copper

Bracket:Steel, Nickel Plated Over Copper

Board Lock:Copper Tin Plated  Over Copper



Electrical Characteristics of Receptacles SCSI DB 100 female connector with latch for PCB Clip Type:

Contact Current Rating: 1.0 Amp

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: > 500MΩ/ Min

Contact Resistance: 35mΩ /Max

Operation Temperature:-55°C~+85°C



Application:

1)motion controller, PCIx card

2)Servers machines and Drive enclosures equipments,

3)Mass storage machines,PCs and Macs and more peripherals

4)RAIDs,CD ROM,File Server board

5)Networking Equipments board

6)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers
