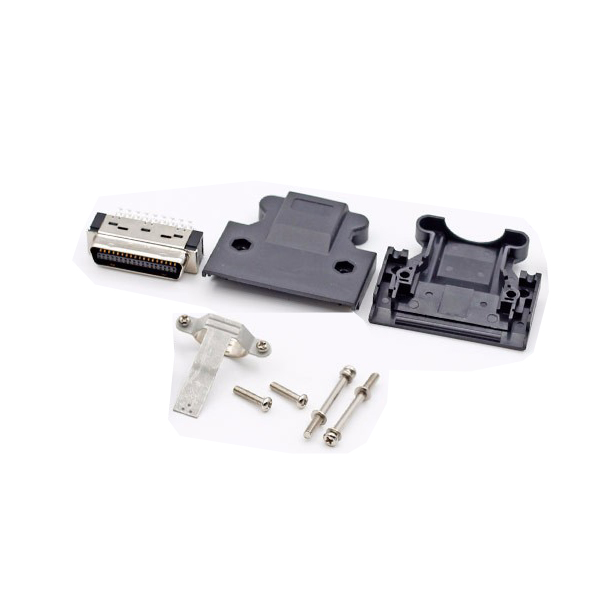

Replace 3M 10336 Solder Type SCSI MDR 36 pin Cable Connector
- Solder Type SCSI MDR 36 pin Cable Connector
- 100% testing before shipment.
- Common Pin:14 ,20,26,36,40,50,68,100 Pin.
- Description
- Inquery Form
Description :
Starte Replace 3M 10336 Solder Type SCSI MDR 36 pin Cable Connector, the connector pin arrangement in two rows, one on top of the other. The top row has 18 pins and the lower row has 18 pins. Often used on the cable for connecting servo driver.
Item | Replace 3M 10336 Solder Type SCSI MDR 26 pin Cable Connector |
Brand | Starte Precision Electronics Co., Ltd |
No. Of Contact | 36 pin |
Contact Type | 1.27mm cable receptacles Connector solder type |
Options | Male, Screw,Assembly |
Wire | 28AWG or 30AWG support |
Contact Finishes | Gold Selective Plating |
Materials of SCSI MDR 36 pin Cable servo Connector:
Housing: Plastic Thermoplastic P.B.T UL94V-0, Black
Contacts: Copper Alloy Gold Selective Plated
Front Shell: Steel, Nickel Plated Over Copper
Materials of SCSI MDR 36 pin Cable servo Connector Hood:
Hood: Plastic Thermoplastic P.B.T UL94V-0
Inner Shell: Steel, Nickel Plated Over Copper
Jack screws:Steel, Nickel Plated Over Copper
Jack screws Hood: PVC (30P)
Electrical Characteristics of SCSI MDR 36 pin Cable servo Connector:
Contact Current Rating: 1.0 Amp
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 500MΩ/ Min
Contact Resistance: 35mΩ /Max
Operation Temperature:-55°C~+105°C
Application:
1)motion controller, PCIx card
2)Servers machines and Drive enclosures equipments,
3)Mass storage machines,PCs and Macs and more peripherals
4)RAIDs,CD ROM,File Server
5)Networking Equipments
6)Replace for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10336 SCSI 36P servo driver
