Descripition:

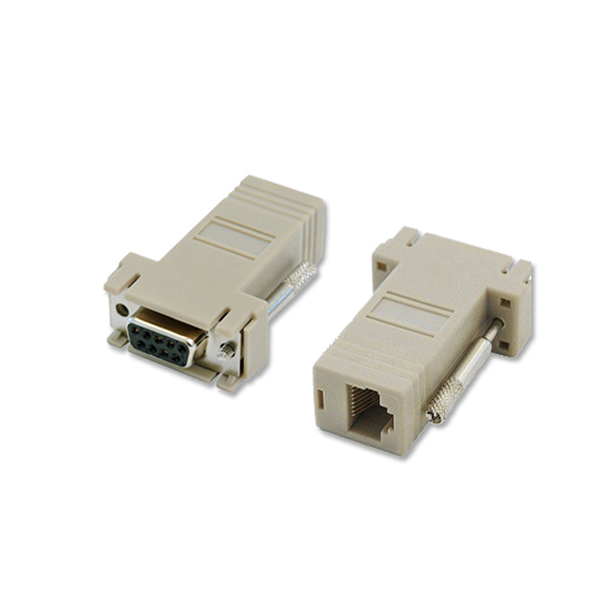

Starte Beige DB9 female to RJ45 female modular adapter, this RS232 female to RJ45 female adapter’s one end features a DB9 female connection, while the other end has an RJ45 female connection. With this adapter, you will be able to connect a server with a serial port and monitor it over IP through your console server. The connection also requires an inexpensive Cat5/Cat6 patch cable between the adapter and the console server’s RJ45 port.
DB9 f to RJ45 f adapter
| Item | Beige DB9 female to RJ45 female modular adapter |
| Brand | Starte Precision Electroincs Co., Ltd |
| Product type | Serial adapter |
| Connector 1 | D-sub 9 female connector |
| Connector 2 | RJ45 female connector |
| Wire | UL 1007 26 AWG |
| Screw | #4-40 UNC,Nickle Plated |
| Pin out | Custom supported |
| Color | Beige |
Feature of Beige DB9 female to RJ45 female modular adapter:
Straight Wiring for DB9 Serial Ethernet Switch/Router Connections
Access your network hardware via DB9 serial port
Slotted Thumbscrews for secure connections
Cost-effective solution to connect serial printers, terminals, modems, POS devices and other serial equipment
Customed pin layput supported
