HPDB 68 pin female to female SCSI Cable

HPDB 68 pin female to female SCSI Cable

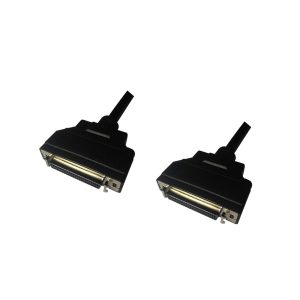

Starte HPDB 68 pin female to female SCSI Cable with latch clip. This High Density 68 ways female to female SCSI Cable features a HPDB 68 pin female connector with latch clip on each side. Made with 34 Pairs SCSI Shielded wire. Used to extend the cable length between two SCSI devices, compatible with 68-pin Half-Pitch DSUB breakout boards.



Product Parameters of HD68 female to DB68 female SCSI-III Cable:

Item	HPDB 68 pin female to female SCSI Cable
Brand	Starte
Model No.	CSCF020
Cable Type	68 Pin SCSI cable
No. Of Contact	68 pin
Connector type	IDC type with metal Hood and Latch Clip
Connector 1	HPDB 68 pin female SCSI connector
Connector 2	HD 68 pin female SCSI connector
Fastener Type	Latch Clip
Mould or Assembly	Assembly
Wire	UL2990 28AWG*34Pairs+Braid+Al-foil+Drain Wire, Bare copper
Color	Black
Jacket	PVC
MOQ	100 pieces
Sample	Free
Package	PE bags
Warranty	Two years
OEM	Support



Specification of Half-Pitch DSUB 68 female to female SCSI Cable:

1)Connector: HPDB 68 pin female SCSI-3 connector

2)Wire: UL2990 28AWG*34 Pairs+Al-foil+Braid+Drain Wire, Bare Copper

3)Latch Clip secure the cable to the mating connector

4)Rated for all SCSI speeds from HVD-Ultra 320.



Application of HPDB 68 extension SCSI Cable with Latch Clip:

This HPDB 68 pin female to female SCSI Cable can be used to extend the cable length between two SCSI devices, compatible with 68-pin Half-Pitch DSUB breakout boards.
