Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector

  • Solder Type SCSI MDR 20 pin Cable servo Connector
  • 100% testing before shipment.
  • Common Pin:14 ,20,26,36,40,50,68,100 Pin.
  • Description
  • Inquery Form

Description :

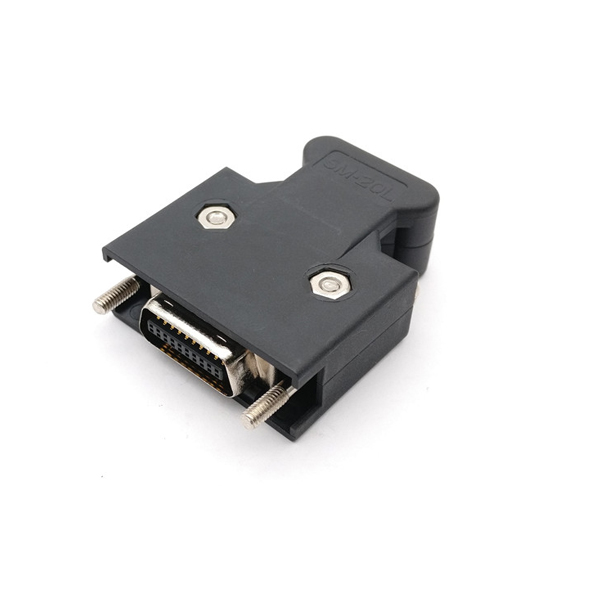

Starte Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector, the connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. Often used on the cable for connecting servo driver.

Solder Type SCSI MDR 20 pin Cable servo Connector

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector

Item Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector
Brand Starte Precision Electronics Co., Ltd
No. Of Contact 20 pin
Contact Type 1.27mm cable receptacles Connector solder type
Options Male, Screw,Assembly
Wire 28AWG or 30AWG support
Contact Finishes Gold Selective Plating



Materials of SCSI MDR 20 pin Cable servo Connector:

Housing: Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts: Copper Alloy Gold Selective Plated

Front Shell: Steel, Nickel Plated Over Copper



Materials of SCSI MDR 20 pin Cable servo Connector Hood:

Hood: Plastic Thermoplastic P.B.T UL94V-0

Inner Shell: Steel, Nickel Plated Over Copper

Jack screws:Steel, Nickel Plated Over Copper

Jack screws Hood: PVC (30P)



Electrical Characteristics of SCSI MDR 20 pin Cable servo Connector:

Contact Current Rating: 1.0 Amp

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 500MΩ/ Min

Contact Resistance: 35mΩ /Max

Operation Temperature:-55°C~+105°C



Application:

1)motion controller, PCIx card

2)Servers machines and Drive enclosures equipments,

3)Mass storage machines,PCs and Macs and more peripherals

4)RAIDs,CD ROM,File Server

5)Networking Equipments

6)Replace for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10320 SCSI 20P servo driver
