15 Pin SATA to 6 Pin PCI Express Graphics Video Card Cable
1)Power your video card inside your computer. It is perfect if you don’t have enough PCI-E power connectors to run your card
2)Short length is perfect for internal cable management.
3)Decrease the risk of damaging internal connectors that are difficult to reach and unplug
4)Reduce the strain on the connectors of SATA drives or a computer motherboard.
5)Eliminates the need to upgrade your existing SATA power supply in order to use a PCI Express video card.
- Description
- Inquery Form
15 Pin SATA to 6 Pin PCI Express Graphics Video Card Cable

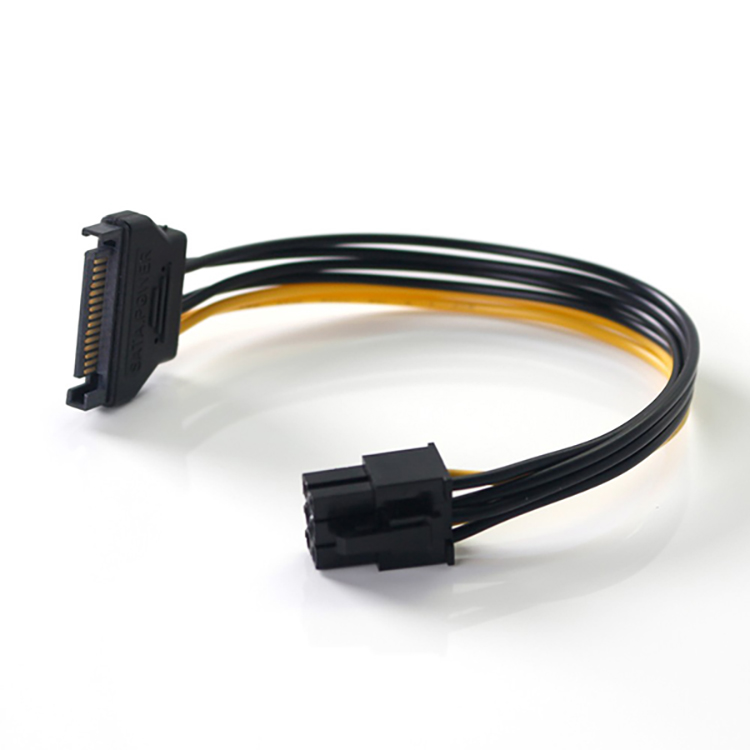

Starte 15 Pin SATA to 6 Pin PCI Express Graphics Video Card Cable, this 6 Pin PCI-E Graphics Card to 15 Pin SATA Power Line Adapter allows SATA plugs to connect into the 6 pin power socket on a PCI-E graphics card. Connecting a Sata power extension cable can decrease the risk of damaging internal connectors that are difficult to reach and unplug, and also reduce the strain on the connectors of SATA drives or a computer motherboard.
Product Parameters of 15-Pin SATA To 6-Pin PCI-E VGA Power Cable:
SATA 15-Pin Male To 6-Pin PCI Express Cable
| Item | 15 Pin SATA to 6 Pin PCI Express Graphics Video Card Cable |
| Brand | Starte |
| Model No. | SACC008 |
| Cable Type | 15pin SATA to 6 pin PCI-e cable |
| Connector 1 | SATA 15 pin male power connector x1 |
| Connector 2 | 6 pin PCI Express female connector x1 |
| Connector plating | Nickle Plated |
| Gender | Male to female |
| Wire | UL 18AWG |
| Conductor | TC |
| Pin layout | Standard |
| Jacket | PVC |
| Sample | Allowed |
| MOQ | 500 pcs |
| Package | PE bags |
| Warranty | Two years |
| OEM | Support |

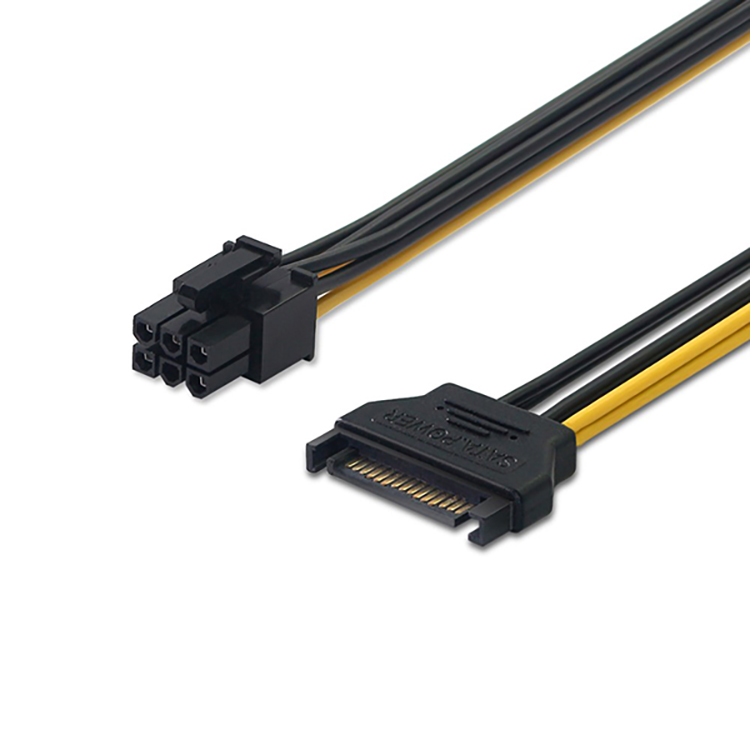

SATA 15 Pin to 6 Pin PCI Express Graphics Cable
Feature of SATA 15 Pin to 6 Pin PCI Express Graphics Video Card Cable:
1)Power your video card inside your computer. It is perfect if you don’t have enough PCI-E power connectors to run your card
2)Short length is perfect for internal cable management.
3)Decrease the risk of damaging internal connectors that are difficult to reach and unplug
4)Reduce the strain on the connectors of SATA drives or a computer motherboard.
5)Eliminates the need to upgrade your existing SATA power supply in order to use a PCI Express video card.
Application of SATA 15pin male to 1 x 6pin PCI female power Cable:
This SATA 15-Pin Male To 6-Pin PCI Express Cable can be connected to a power supply with SATA interface and enables power supply to PCI Express cards, e.g.
PCI Express graphic cards.
