Hard Disk 15 Pin SATA to Molex IDE 4 Pin Power Cable
1)Convert single 4 pin Female Molex HDD connector to a SATA power connector.
2)Allow a Serial ATA drive to operate from a Regular PC power supply connector.
3)Help create additional power connections from existing SATA sources
4)Provide power to your Serial ATA hard drive through a standard Molex connection from your power supply
5)Compliant with Serial ATA 1.0 standard
- Description
- Inquery Form

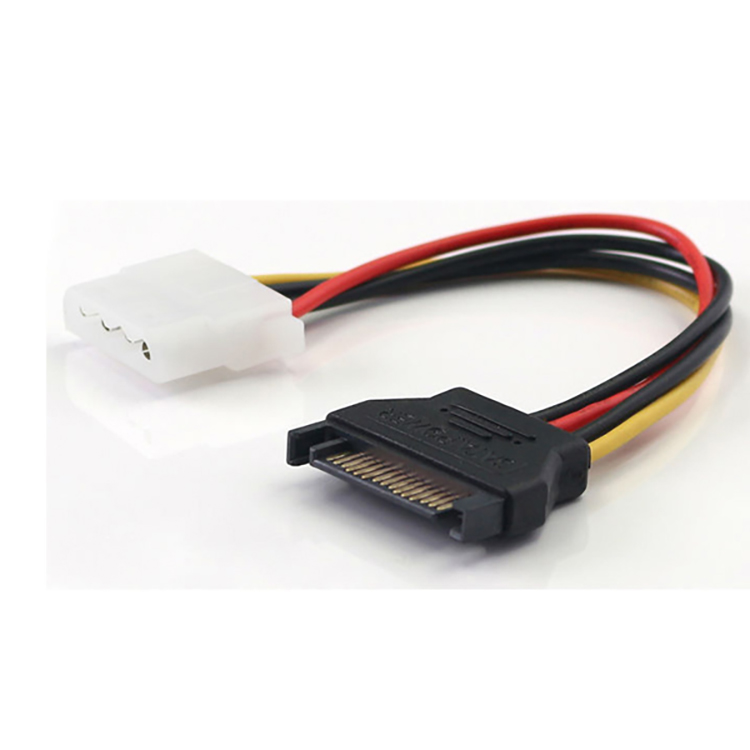

Hard Disk 15 Pin SATA to Molex IDE 4 Pin Power Cable
Starte Hard Disk 15 Pin SATA to Molex IDE 4 Pin Power Cable, this 4-Pin Molex Peripheral Power Connector to SATA Power Adapter features a 4 pin Molex female on one end and 15pin SATA male on the other end. Converts IDE power to SATA power. It is compatible with both 2.5″ and 3.5″ Serial ATA Hard Drives allows the use of newer hard drives with older power supplies.
Product Parameters of 15 Pin SATA male to 4 pin Molex female Power Cable:
SATA 15 pin to 4 pin molex power cable
| Item | Hard Disk 15 Pin SATA to Molex IDE 4 Pin Power Cable |
| Brand | Starte |
| Model No. | SACC009 |
| Cable Type | 15pin SATA to 4 pin molex power cable |
| Connector 1 | 15-pin SATA male connector x1 |
| Connector 2 | 4 pin molex female connector x1 |
| Connector plating | Nickle Plated |
| Gender | Male to female |
| Wire | UL 18AWG |
| Conductor | Bare Copper |
| Sample | Allowed |
| MOQ | 500 pcs |
| Package | PE bags |
| Warranty | Two years |
| OEM | Support |
15 Pin SATA male to 4 pin Molex female Power Cable
Feature of 15 Pin SATA to Molex IDE 4 Pin Hard Drive HDD Power Cable:
1)SATA 15 Pin Male to 4 pin Power Cable converts single 4 pin Female Molex HDD connector to a SATA power connector.
2)SATA 15 Pin to 4 Pin Power Cable allows a Serial ATA drive to operate from a Regular PC power supply connector.
3)SATA Power Cable helps create additional power connections from existing SATA sources
4)Provide power to your Serial ATA hard drive through a standard Molex connection from your power supply
5)Compliant with Serial ATA 1.0 standard
Application of Serial ATA SATA to 5.25 Molex Power Adapter Cable:
This Molex 4 Pin Power to 15 pin SATA Female Adapter Cable is ideal for desktop or servers that use Serial ATA Hard Drives. It enables connecting an internal SATA device to a power supply with only LP4 Molex connectors remaining.
